Tractors > John Deere > 60

John Deere 60 - dimensions

John Deere 60 tractor photo
1952 - 1956
Row-Crop tractor
Previous model:John Deere A
Next model:John Deere 620
John Deere 620 Standard
Series next:John Deere 70
Series back:John Deere 50
more John Deere 60 specifications...






John Deere 60 Tires:

Ag front:6.00-16
Ag rear:11-38
Ag front:7.50-16
 9.00-10
Ag rear:12-38
 9-42
 11-42


Dimensions:

Weight (shipping):5,300 lbs [2404 kg]
Weight (operating):5,800 lbs [2630 kg]
Weight (ballasted):7,400 lbs [3356 kg]
Wheelbase:90 inches [228 cm]
Length:139 inches [353 cm]
Width:86.625 inches [220 cm]
Height (hood):65.6 inches [166 cm]
Height (exhaust):84.1 inches [213 cm]
Rear axle:3.125 inch diameter [79 mm]
Rear tread:56 to 88 inches
[142 to 223 cm]

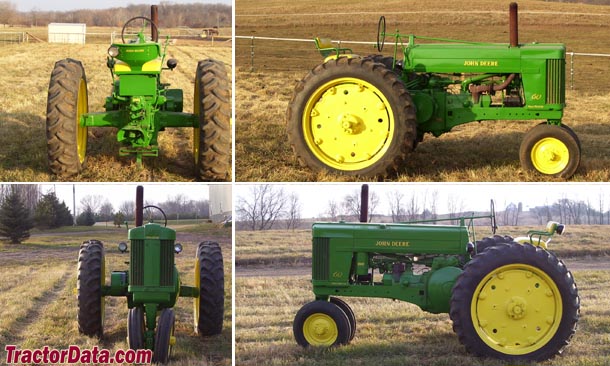

John Deere 60 walk around photo
