John Deere A Tests



John Deere A tractor photo
1934 - 1952
Model year
Two-Cylinder Letter Series
Row-Crop tractor
Series map:
B
A
17.8hp*
26.3hp*
*Estimated engine power for comparison only.
Nebraska Tractor Test 222

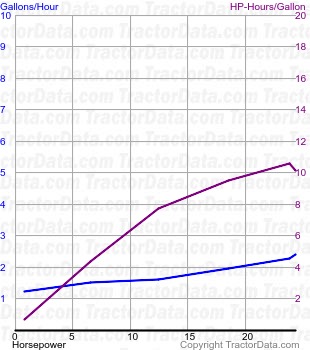

A fuel use from test 222
Nebraska Tractor Test 222
Distillate 4-speed 2WD
April 19 - 27, 1934
Link: Nebraska Tractor Test 222 file
Belt power (max)24.71 hp
18.4 kW
Belt fuel use (max)2.4 gal/hour
9.1 l/hour
PTO performance
Power at rated engine speed23.63 hp
17.6 kW
Fuel use2.3 gal/hour
8.7 l/hour
Drawbar performance
Max power18.72 hp
14.0 kW
Gear 1 used for power test.
Max pull2,923 lbs
1325 kg
Gear 1 used for pull test.
