Allis Chalmers D10 Tests


Allis Chalmers D10 tractor photo
1959 - 1967
D Series
Row-Crop tractor
Series map:
D10
D12
31.0hp
31.0hp
Nebraska Tractor Test 724

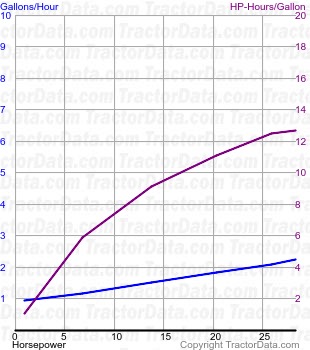

D10 fuel use from test 724
Nebraska Tractor Test 724
138 gasoline 4-speed 2WD
October 13 - 20, 1959
Link: Nebraska Tractor Test 724 file
PTO performance
Power at rated engine speed28.51 hp
21.3 kW
Fuel use2.2 gal/hour
8.3 l/hour
Drawbar performance
Max power25.73 hp
19.2 kW
Fuel use2.3 gal/hour
8.7 l/hour
Gear 3 used for power test.
Max pull3,555 lbs
1612 kg
Gear 1 used for pull test.
Nebraska Tractor Test 812

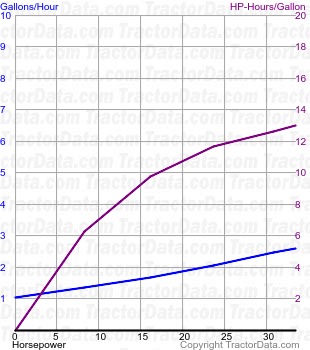

D10 fuel use from test 812
Nebraska Tractor Test 812
149 gasoline 4-speed 2WD
April 3 - 18, 1962
Link: Nebraska Tractor Test 812 file
PTO performance
Power at rated engine speed33.46 hp
25.0 kW
Fuel use2.6 gal/hour
9.8 l/hour
Drawbar performance
Max power28.78 hp
21.5 kW
Fuel use2.5 gal/hour
9.5 l/hour
Gear 3 used for power test.
Max pull4,106 lbs
1862 kg
Gear 1 used for pull test.
